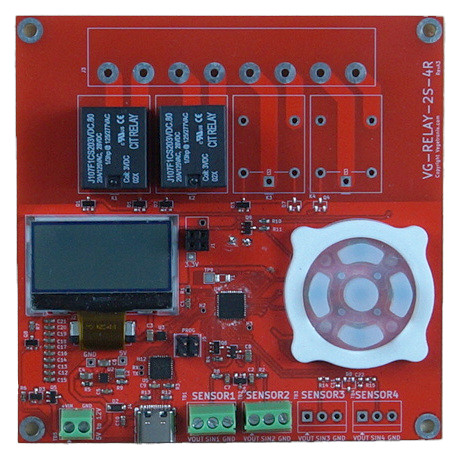

Pump Plexor™ Buy Now
Smart Sensor-Controlled Relay Multiplexer
Features
- Automatic Pump Alternation
- Supports 2 to 4 Pumps, and 2 to 4 sensors.
- Extends Pump Life
- Improves System Reliability
- Adjustable Alternation Timing
- Relay Outputs
- Digital Control, with keypad and LCD
- LED indicators, indicate power on and relay contact.
- Terminal blocks for quick connection.
- Low price.
- Small size.
- 4 mounting holes in each corner.
Applications
- Gray water pump control
- Water tank level control
- Irrigation Pumping Systems
- Sump Pump Systems
- Wastewater Systems
- Aquaculture and Water Features
- Industrial Fluid Handling
Alternate Pumps. Prevent Overload. Automate Anything.
The Pump Plexor™ is a configurable sensor-driven relay controller that intelligently multiplexes up to four pumps, valves, motors, or other loads over time. By alternating operation between multiple devices, the Pump Plexor™ balances runtime, extends equipment life, and prevents circuit overloads caused by multiple high-current devices operating simultaneously.
Designed for graywater systems, irrigation systems, water storage tanks, wastewater applications, and industrial automation, the Pump Plexor™ combines programmable timing, sensor control, and relay management into a single easy-to-configure platform.
Unlike traditional duplex pump controllers, the Pump Plexor™ supports both analog and contact-closure sensors, allowing it to solve a wide variety of control challenges.
Why Use a Pump Plexor™?
Many systems require multiple pumps or devices to perform the same job. Traditionally, all devices are wired to operate simultaneously, creating several problems:
- Excessive current draw
- Tripped circuit breakers
- Uneven equipment wear
- Reduced pump life
- Increased maintenance costs
The Pump Plexor™ solves these problems by operating loads one at a time according to user-defined schedules and sensor conditions.
For example, instead of running four pumps simultaneously, the Pump Plexor™ can operate:
Pump 1 → Pump 2 → Pump 3 → Pump 4 → Rest
This dramatically reduces peak electrical demand while distributing wear evenly across all equipment.Prevents Circuit Overload
One of the primary advantages of the Pump Plexor™ is reducing electrical load.
By operating pumps sequentially instead of simultaneously, the Pump Plexor™:
- Reduces peak current draw
- Prevents nuisance breaker trips
- Allows multiple pumps to share a single circuit
- Reduces startup surge currents
- Simplifies electrical installations
Independent Sensor Control
Each relay can be assigned its own sensor input.
Supported sensor types include:
- Float switches
- Pressure switches
- Contact closures
- Leak detectors
- Water level sensors
- Analog level sensors
- Soil moisture sensors
- Custom sensors
Analog and Digital Sensor Support
Compatible with both:
- Contact-closure sensors
- Analog sensors - Including AquaPlumb® and other industry-standard water level sensors.
Adjustable Run Time
Configure the run time for each relay individually.
Examples:
- Run Pump 1 for 240 seconds
- Run Pump 2 for 120 seconds
- Run Valve 3 for 30 seconds
- Rest for 30 seconds
Ideal for balancing flow rates between devices.
Adjustable Rest Time
Configure the rest period between relay activations.
Benefits include:
- Motor cooling
- Pump recovery
- Tank refill time
- Reduced mechanical stress
Adjustable Sensor Thresholds
Sensor activation points can be configured as percentages directly from the keypad.
Examples:
- Turn on above 80%
- Turn off below 20%
- Activate between two levels
Analog Sensor Hysteresis
Built-in hysteresis prevents relay chatter and rapid cycling near threshold points.
Benefits include:
- Increased relay life
- Reduced pump wear
- More stable operation
- Improved system reliability
Easy Configuration
A built-in LCD display and keypad provide complete configuration without requiring a computer.
Adjust:
- Run times
- Rest times
- Sensor thresholds
- Hysteresis settings
- Relay assignments
- System parameters
All settings are stored in non-volatile memory.
USB-C Firmware Updates
New features and enhancements can be updated through the USB-C port.
Flexible Power Options
Power the Pump Plexor™ using:
- 5–12 VDC terminal block
- USB-C connector
Perfect for both permanent installations and bench testing.
Example Application
A graywater tank contains four transfer pumps.
The water level rises above the configured threshold.
Instead of starting all four pumps simultaneously, the Pump Plexor™:
- Runs Pump 1 for four minutes
- Waits for the programmed rest period
- Runs Pump 2 for four minutes
- Continues through Pumps 3 and 4
The cycle repeats until the tank reaches the empty threshold.
Benefits:
- Lower current draw
- No breaker overload
- Equal pump wear
- Longer equipment life
- Improved reliability
Vegetronix Modular Building Blocks
We take a modular approach with our product lines. Each product is simple and low cost, and will easily interface to all of our other products. This approach allows you to build any type of application from our basic set of components.
We Want you to be Happy
Ordering is easy and low risk. Since we build our own products at our factory, all of our products are in stock. When you place your order from our website, it will ship same day from our factory, and you'll have it in your hands in just a couple of days. We ship to nearly EVERY COUNTRY in the world.
If you aren't amazed and delighted by your new Pump Plexor Board, return it for a refund within 30 days.
Other Vegetronix Products of Interest
Pricing and Ordering Info
We ship to nearly EVERY COUNTRY on the planet, directly to you from our factory.
99% of orders ship same day.
| BUY NOW FROM OUR WEBSITE STORE | |||
| Part Number | Description | Price | Purchase |
|---|---|---|---|
| PUMP-PLEXOR-2R | PUMP-PLEXOR with 2 Control Relays, and 2 Sensor Inputs. | Buy Now | |
| PUMP-PLEXOR-4R | PUMP-PLEXOR with 4 Control Relays, and 4 Sensor Inputs. | Buy Now | |
| POWER-ADAPTER-9V-US | 9VDC 1A Power Supply Adapter for the US. | Buy Now | |
| BARREL-TERM | Barrel Connector to Terminal Block Adapter. | Buy Now | |
For volume pricing contact us.
Specifications
| VG-RELAY-DC | |
|---|---|
| Max Power Consumption | 500mA |
| Supply Voltage | 6V to 14 VDC. |
| Relay Load | 10A at 250VAC maximum load |
| Dimensions | 3.93" (100mm) Square |
| Number of Relay Outputs | 2-4 |
| Number of Sensor Inputs | 2-4 |
Installation
The PUMP-PLEXOR should installed in a grounded metal cabinet metal standoffs, such that the board is electrically ground to the chassis. Consult a qualified electrician to install.
